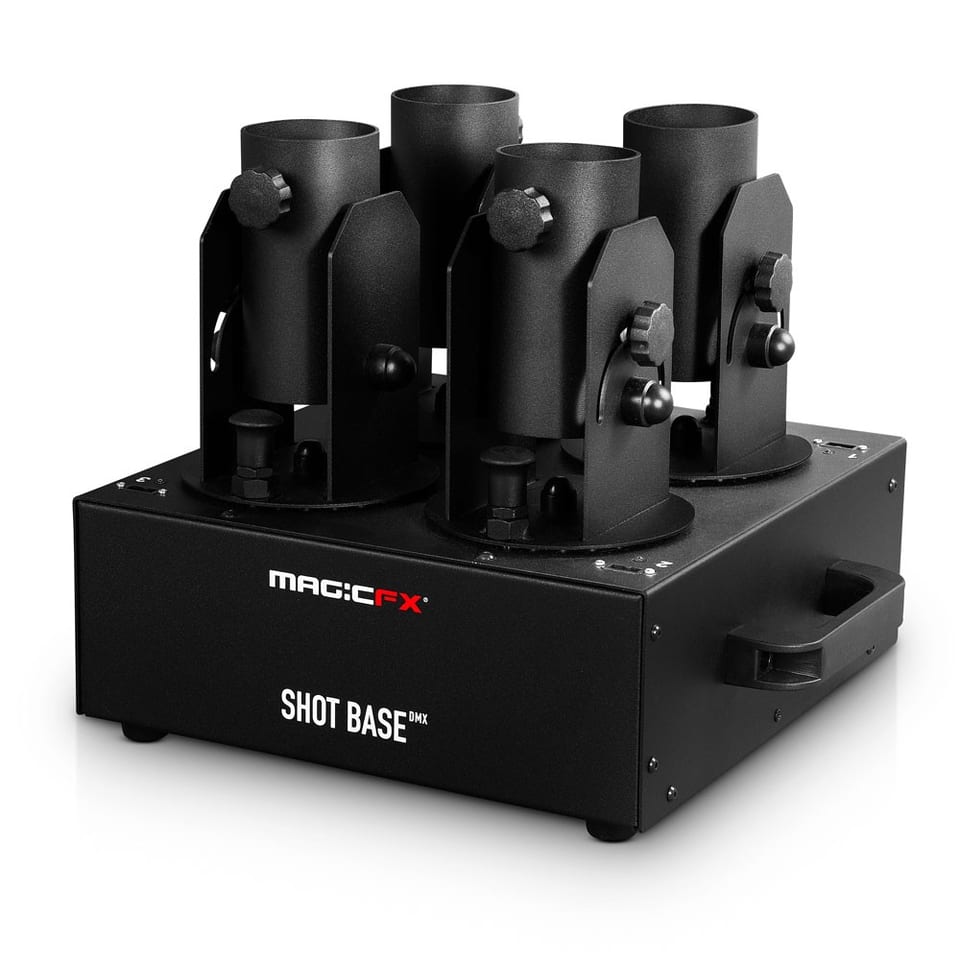

Magic FX Shot Base DMX
Brand: Magic FX
- Inspected and tested before every rental
- Comes with its documentation: manual and certificates
- Shipped from our 12,000 m³ warehouse in Affligem, Belgium
- Reachable outside office hours too
Description
The E-Shot Base 4 DMX is the most easy and professional confetti and streamer shot unit available. The E-Shot system is designed to fire pre-filled, single use electric cannons (E-Shooters). The E-shooters contain a pressurized nitrogen cartridge for a powerful effect. The cannons are available in 40 and 80 cm’s, pre-filled with confetti or streamers. Electric cannons save time, are available at a low price and are easy to use. Electric cannons launch confetti up to 12m and streamers up to 20m! The E- Shooters are fired from a standard DMX-512 controller. This makes it possible to fire the cannons easily in a large scale show.
Technical data
| Dimensions (L × W × H) | 31 × 38 × 29.5 cm |
|---|---|
| Weight | 9.75 kg |
| Power | 400 W |
| Runs on | Confetti, Streamers |
| Mains frequency | 50–60 Hz |
| Power connector | powerCON |
| Fuse | short circuit protection |
| DMX channels | 5 |
| DMX protocol | DMX-512 |
| Operating temperature | 0 – 30 °C |
| Max. operating humidity | 75 % |
| Mounting | floor or truss (MFX3104 clamps) |
| Article code | VH-MFX0350 |
Show all specifications (20 more)
| Display | Yes |
|---|---|
| DMX input connector | 3-pin Neutrik XLR Male Socket |
| DMX output connector | 3-pin Neutrik XLR Female Socket |
| DMX safety channel | Yes |
| DMX output channels | 4 |
| DMX address modes | set by sequence, set individually |
| DMX safety range | 40–60 % |
| Power output | AC 12V~50-60Hz |
| Power loop out | Yes |
| Cannon slots | 4 |
| Compatible cannons | 50cm electric confetti, 80cm electric confetti, 50cm electric streamer, 80cm electric streamer |
| Cannon output confetti 50cm | 5 m |
| Cannon output streamer 50cm | 12 m |
| Cannon output confetti 80cm | 12 m |
| Cannon output streamer 80cm | 20 m |
| Lock button | Yes |
| Part nr | PART01925 |
| Max. DMX cable length | 1200 m |
| Max DMX receivers per sender | 32 |
| Voltage | 230 V |
New to dry hire? Read how dry hire works.
Confetti & streamers for this unit
All consumables →About confetti effects
How it works
Confetti cannons fire confetti or streamers over the audience in one burst; confetti blowers keep a steady cloud in the air. Launchers run on compressed air or on CO2, depending on the model; handheld confetti shooters need no equipment at all.
What you need
Confetti or streamers of the right size and material — paper, metallic or slowfall — and, depending on the launcher, compressed air or CO2. Each product sheet shows the confetti that fits the unit; everything is in consumables.
Good to know
Plan the clean-up with the venue: metallic and slowfall confetti stay in the air longer and spread further. Never fire a launcher at people at close range, and keep confetti away from flame and cold spark effects.
Frequently asked questions
Paper, metallic or slowfall?
Paper is light and easy to clean up; metallic catches the light; slowfall floats down slowly and stays in the air longest.
