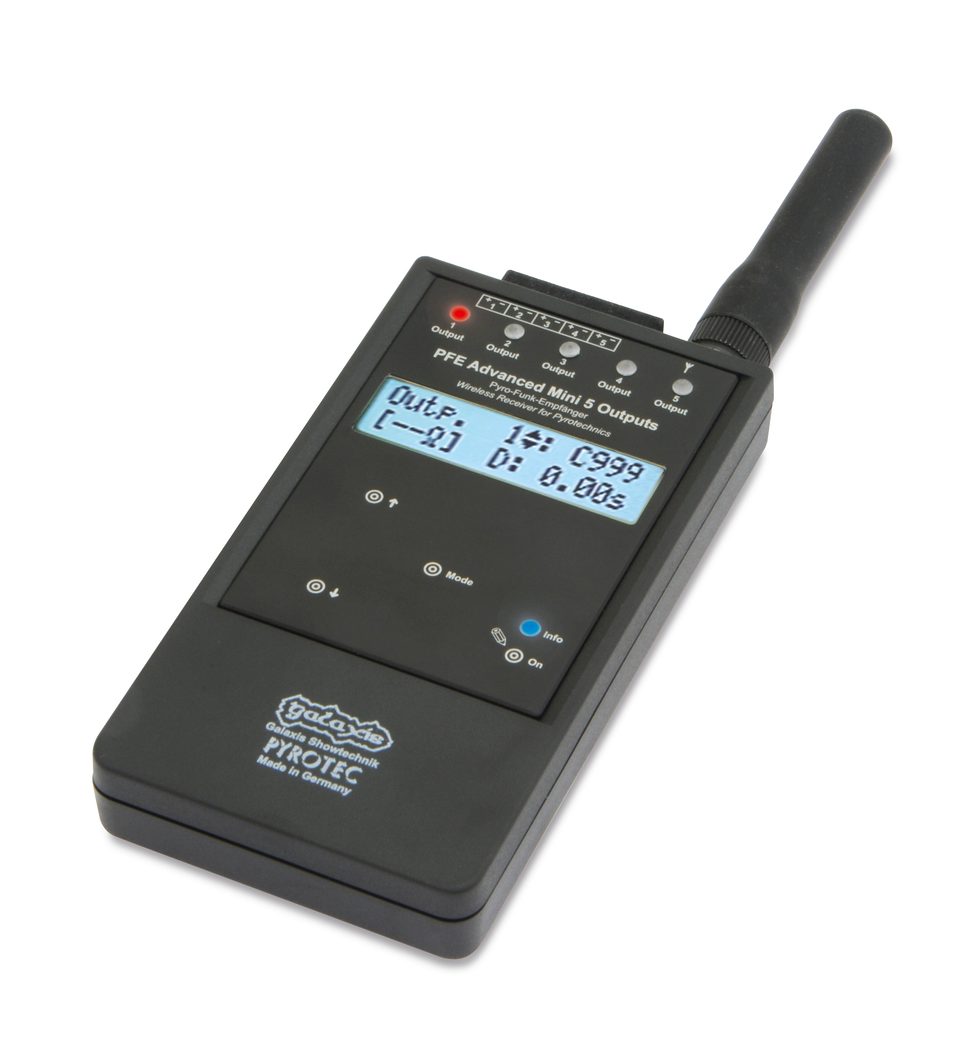

Galaxis PFE Advanced mini, 5 outputs receiver with stepping function, excl. battery

The PFE Advanced Mini 5 Outputs is a receiver of the Advanced series. Thanks to its compact size, it is ideal for SFX and stage pyrotechnics.

The five outputs of the PFE Advanced Mini 5 can be individually programmed directly on the device and optionally stepped. Of course, the PFE Advanced Mini 5 can also be programmed directly by radio from the PFC Advanced.

The internal resistance measurement indicates exactly how high the resistance of the connected e-matches including the igniter cable is. The result can be read either on the device itself or remotely from the PFC Advanced. Based on the resistance values of the connected firing circuits and the set limit resistance, the device automatically determines whether firing is reliably possible and displays this to you.

Its connection socket makes working much easier. No tools are required for connecting and disconnecting. To connect the igniter cable, it is simply plugged into the contact mechanism and automatically clamped. To disconnect the cables, simply press the respective button to release the cable. The connection terminal can also be removed completely. This makes the preparation of effects much easier, especially if it is a recurring show or the preparation of numerous props for multiple takes on the set.

The device is operated with two Mignon cells, which can be alkaline batteries or NiMH rechargeable batteries. The operating time is up to approx. 18 hours. Using the optional Sleep mode, the stand-by time can be increased to 23 days.

Each of the five firing outputs has its own capacitor. This means that a short circuit on one output does not affect the firing power of the other outputs.

The device can trigger 3 ‘A’ or 2 ‘U’ e-matches in parallel or series connection on each output.

To increase the firing power, several outputs can also be programmed identically and thus fired simultaneously – without any time delay.
