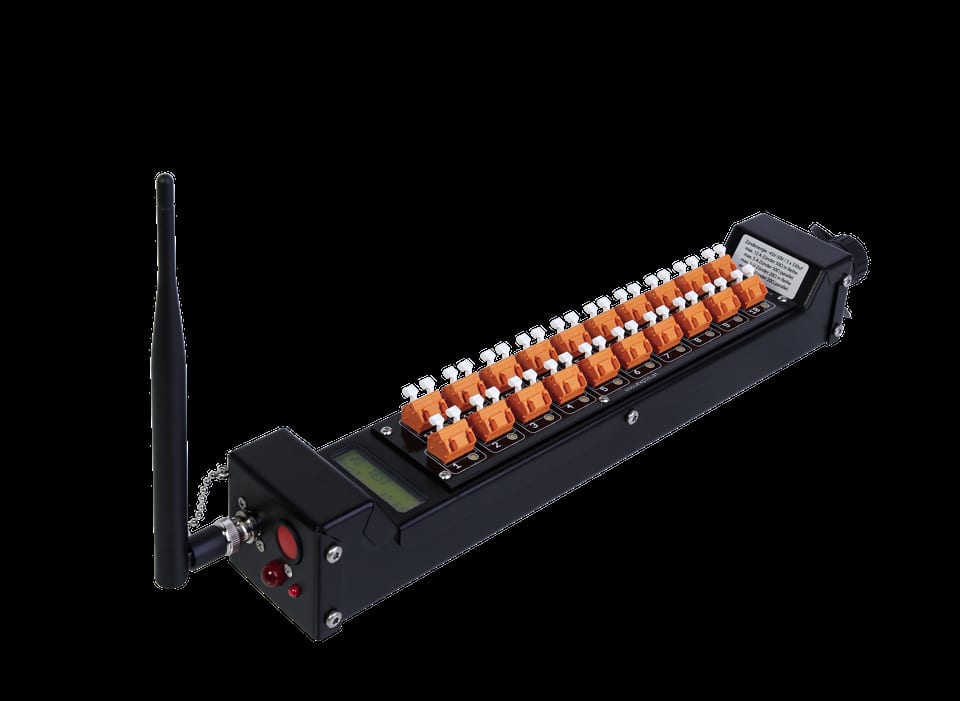

Explo RX2-20K receiver

The RX2-20K is a receiver with 20 individually controllable channels. Due to its channelnumber and low size and weight it is especially well suited for indoor events or outdoor shows where flexible positioning of the receivers is important.

Thanks to a seperatly available mount it can be easily be mounted on angle shot systems or truss constructions, which allows for a space saving design of your shows.

Thanks to the bidirectional radio control important stati of the receiver (Ohm measurements on every channel, battery status and many more) can be checked at the transmitter.

The RX2-20K allows for extremely fast ignitions in steps of 10ms. Thusly there are no boundaries for the showdesign.

FEATURES:
-  Ohm measurement on every single channel.

-  Safe, multiple times encrypted radio control.

-  Watertight design protects optimal from rain.

-  Powerful NiMH-battery.

-  Extremely long standby.

Technicals details:

Channels:                            20
Ignition Energy:                   45-50V / 5x 330uF
Measurements:                    400 x 71 x 58mm

weight:                                1,1kg
Power supply:                       1x NiMH-Akku 12VDC

Case:                                   Powder coated aluminium
Radio range:                         800m
Standby:                               40h / 80h (sleep-mode)
