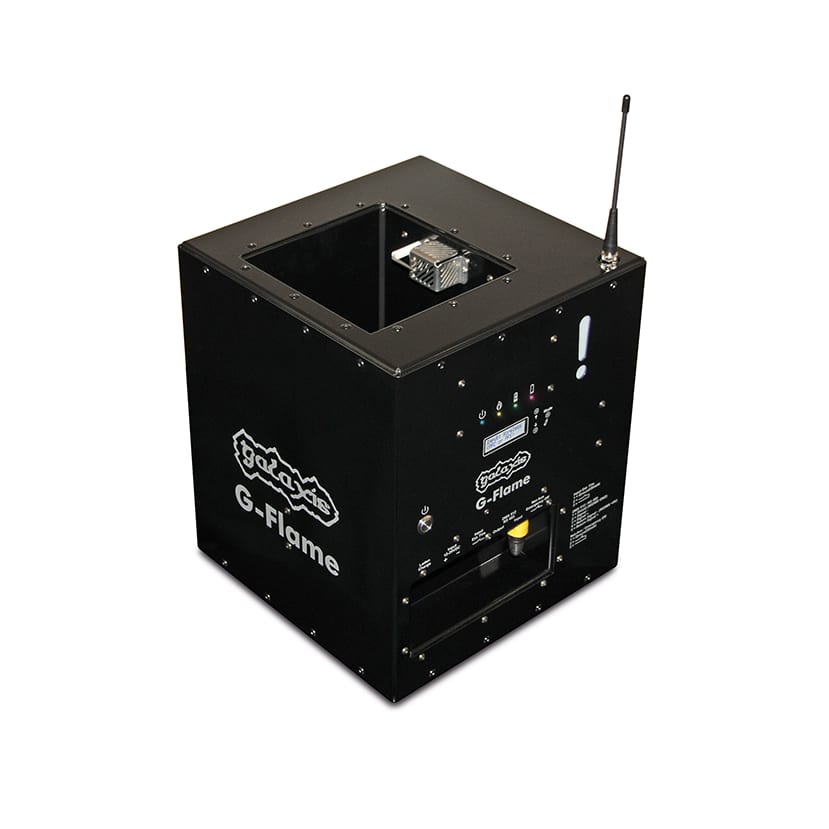

Galaxis G-Flame incl. aerosol adapter & nozzle "XXL"
Brand: Galaxis
- Inspected and tested before every rental
- Comes with its documentation: manual and certificates
- Shipped from our 12,000 m³ warehouse in Affligem, Belgium
- Reachable outside office hours too
Complete your setup?
These items are linked to the Galaxis G-Flame incl. aerosol adapter & nozzle "XXL". Tick what you need.
Description
The Galaxis G-Flame is a flame projector which is extremely versatile in indoor, outdoor and special effects applications and is equipped with numerous features. In comparison to other products on the market, the Galaxis flame effect devices achieve much higher flame heights and a much fuller and therefore more beautiful flame pattern with a low noise level (, making it ideal for stages or TV work. Numerous control variants are available and in addition to the wired DMX512, wireless DMX receivers can also be powered via the XLR connection. This means that no power supplies, batteries or rechargeable batteries are required for the DMX receivers. All components are housed in a very stable, powder-coated aluminum housing.
Size: 30 cm x 30 cm x 35 cm
Weight: 10,5 kg
Voltage: 12 V battery charged
Power: N/A
Control: DMX-512
Output: max 8 m
Consumables: Propane, Butane
Technical data
| Dimensions (L × W × H) | 30 × 30 × 35 cm |
|---|---|
| Weight | 10.5 kg |
| Power | 8 W |
| Runs on | Propane/butane |
| DMX channels | 2 |
| DMX connector | 5pin XLR |
| DMX in/out | Yes |
| Wireless control | Yes |
| Operating temperature | -20 – 65 °C |
| Operating humidity | 10-90 rH no condensation |
| Storage temperature | -30 – 70 °C |
| Mounting | stand or truss bottom mount |
| Article code | VH-1482 |
Show all specifications (57 more)
| Tilt protection | Yes |
|---|---|
| Ignition | electrical arc |
| Flame monitoring | ionization measurement |
| Housing | black powder-coated steel housing with rain drainage |
| Battery | sealed lead acid 2x12V 7Ah |
| Battery voltage | 24 V |
| CE | Yes |
| Num magnetic valves | 2 |
| Battery capacity | 7000 mAh |
| Battery charge time | 30 h |
| Operation time wireless | 110 h |
| Operation time DMX | 70 h |
| Operation time RS-485 | 70 h |
| Max. burn duration | 25 s |
| Cooldown after max burn | 2 min |
| Safety timer | 15 s |
| DMX termination | 110 Ω |
| RS-485 interface | Yes |
| Wireless module optional | Yes |
| Wireless freq EU | 433.05–434.79 MHz |
| Wireless freq US | 458–462.5 MHz |
| Wireless RF channels EU | 70 |
| Wireless RF channels US | 360 |
| Wireless range standard | 800 m |
| Wireless range superscan | 2000 m |
| Tilt max gas bottle | 45 ° |
| Tilt max gas cartridge | 75 ° |
| Max. gas pressure | 4 bar |
| Gas hose pressure approval | 6 bar |
| Gas bottle sizes | 5, 11 or 33 |
| Cartridge content | 600 ml |
| Cartridge content | 330 g |
| Cartridge composition butane | 65–70 % |
| Cartridge composition propane | 30–35 % |
| Power upgrade max flame height | 8 m |
| Power upgrade cartridges | 4 |

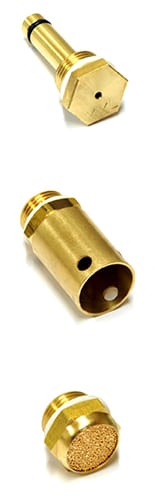

| Nozzle sizes | S, M, L, XL, XXL (cartridge); gasiform phase nozzle; liquid phase nozzle |
| Max. safety distance upwards gas bottle | 7.5 m |
| Max. safety distance sideways gas bottle | 3.5 m |
| Max. safety distance upwards cartridge | 8 m |
| Max. safety distance sideways cartridge | 4.5 m |
| Safety distance power upgrade liquid nozzle upwards | 12 m |
| Safety distance power upgrade liquid nozzle sideways | 6.5 m |
| Safety distance flame bar upwards | 2.5 m |
| Safety distance flame bar sideways | 2 m |
| Max. operating altitude | 4000 m |
| Charger mains voltage | 100-240 VAC 50-60 Hz |
| Charger power | 8 W |
| Control inputs | DMX512, RS485 (PFC cable), wireless (PFC/PFS/PFM), firing key contact, 12-24V DC voltage input, E-Stop |
| DMX safety channel | Yes |
| Hazard zones | 16 |
| Max devices per DMX line | 32 |
| Max. cable length RS-485 | 1000 m |
| Magnetic valve replacement cycles | 50,000 |
| Gas components service life | 8 years |
| Thermal output | 1.2 mW |
| Electrode gap | 3 mm |
New to dry hire? Read how dry hire works.
Accessories
Linked to this item in our system
Galaxis G-Flame aerosol nozzle “S”
Galaxis G-Flame propane gas nozzle
Galaxis G-Flame liquid propane nozzle
Galaxis G-Flame power upgrade (excl. nozzle)
Hyred LPG hose; TS 21.8L fitting to quick connector, 5 m
Hyred LPG extension hose, 5 m
Hyred LPG extension hose, 10 m
Hyred Propane bottle connector with TS 21.8 L fitting
Hyred Horizontal flame bar for G-Flame incl. nozzle and bracket, 2 m
Hyred Vertical flame bar for G-Flame incl. nozzle and bracket, 2 m
Consumables
All consumables →
About flame effects
How it works
Flame units produce real fire on cue, from a short burst to a column of several metres. Gas units burn propane or a propane/butane mix from cartridges or cylinders. Liquid units atomise a flame fluid and ignite it, which gives a flame with more body; some can add colour.
What you need
Fuel: gas cartridges, or a gas cylinder with regulator and hose, or flame fluid. The nozzle sets the size of the flame. Fuels and colour additives are in consumables; hoses, regulators and nozzles are in the accessories of each unit. Not sure whether gas or liquid suits your show? Read liquid vs gas flame: how to choose.
Safety
Every unit has its own safety distances and an indoor or outdoor rating; respect what the product sheet and the manual say. Keep an extinguisher at hand, watch the wind outdoors, and use a safety arm system so that no effect can fire by accident.
Frequently asked questions
Can flame effects be used indoors?
Some units can, in large venues and with the approval of the venue and the fire service; others are for outdoor use only. Check the rating on the product sheet.
