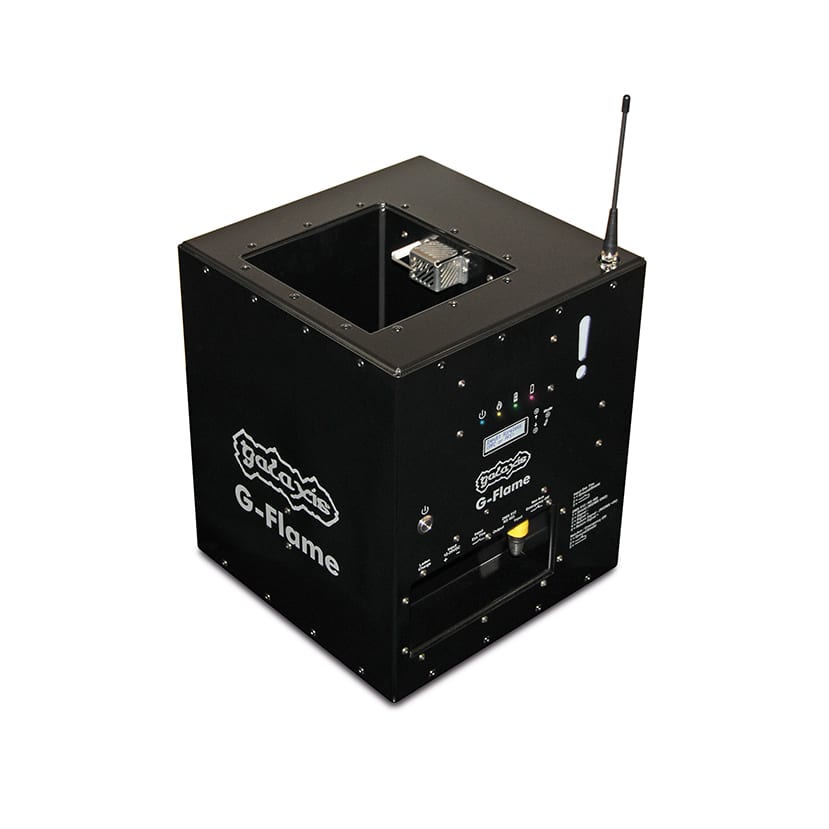

Galaxis G-Flame incl. advanced wireless module, aerosol adapter & nozzle "XXL"
Brand: Galaxis
- Inspected and tested before every rental
- Comes with its documentation: manual and certificates
- Shipped from our 12,000 m³ warehouse in Affligem, Belgium
- Reachable outside office hours too
Complete your setup?
These items are linked to the Galaxis G-Flame incl. advanced wireless module, aerosol adapter & nozzle "XXL". Tick what you need.
Description
The Galaxis G-Flame is a flame projector which is extremely versatile in indoor, outdoor and special effects applications and is equipped with numerous features. In comparison to other products on the market, the Galaxis flame effect devices achieve much higher flame heights and a much fuller and therefore more beautiful flame pattern with a low noise level (, making it ideal for stages or TV work. Numerous control variants are available and in addition to the wired DMX512, wireless DMX receivers can also be powered via the XLR connection. This means that no power supplies, batteries or rechargeable batteries are required for the DMX receivers. All components are housed in a very stable, powder-coated aluminum housing.
Size: 30 cm x 30 cm x 35 cm
Weight: 10,5 kg
Voltage: 12 V battery charged
Power: N/A
Control:
DMX channels:
Output: max 8 m
Consumables:
Technical data
| Dimensions (L × W × H) | 30 × 30 × 36 cm |
|---|---|
| Weight | 11.03 kg |
| Runs on | Propane/butane |
| DMX channels | 2 |
| DMX connector | 5pin XLR |
| DMX in/out | Yes |
| Wireless control | Yes |
| Operating temperature | -20 – 65 °C |
| Storage temperature | -30 – 70 °C |
| Tilt protection | Yes |
| Ignition | electrical arc |
| Flame monitoring | ionization measurement |
| Article code | VH-1482W |
Show all specifications (73 more)
| Housing | black steel |
|---|---|
| Display | LCD |
| Battery voltage | 24 V |
| Num electromagnetic valves | 2 |
| Valve config | in series |
| Battery config | 2x12V 7Ah sealed lead acid |
| Battery capacity | 7000 mAh |
| Charging time | 30 h |
| Operation time firing key | 110 h |
| Operation time wireless | 110 h |
| Operation time RS-485 | 70 h |
| Operation time DMX cable | 70 h |
| Operation time DMX wireless DMX pen | 10 h |
| Max. burn duration | 25 s |
| Cooldown after max burn | 2 min |
| DMX termination | 110 Ω |
| DMX max devices per line | 32 |
| RS-485 max cable length | 1000 m |
| RS-485 max devices per line | 32 |
| Voltage control input | 12 – 24 V |
| Tilt switch threshold | 45 ° |
| Max. tilt angle gas bottle | 45 ° |
| Max. tilt angle cartridge | 75 ° |
| Wireless optional | Yes |
| Wireless EU frequency | 433.05 – 434.79 MHz |
| Wireless EU channels | 70 |
| Wireless US frequency | 458 – 462.5 MHz |
| Wireless US channels | 360 |
| Wireless max range standard | 800 m |
| Wireless max range superscan | 2000 m |
| Max. wireless power | 10 mW |
| Wireless modulation | FM narrowband |
| Wireless protocol | PCM Manchester 40bit CRC |
| Humidity | 10 – 90 % |
| Max. operating altitude | 4000 m |
| Nozzle sizes cartridge | S, M, L, XL, XXL |
| Approved fuels cartridge | butane propane mix 65 35, butane propane mix 70 30 |
| Cartridge content | 600 ml |
| Cartridge content | 330 g |
| Approved gas bottle | 5, 11, 33 |
| Gas bottle max pressure | 4 bar |
| Gas hose approval | 6 bar |
| Liquid phase effect height | 8–9 m |
| Safety distance upward liquid phase | 20 m |
| Safety distance sideways liquid phase | 10 m |
| Safety distance upward power upgrade liquid nozzle | 12 m |
| Safety distance sideways power upgrade liquid nozzle | 6.5 m |
| Safety distance flame bar upward | 2.5 m |
| Safety distance flame bar side | 2 m |
| Safety distance above spectators | 2 m |
| Power upgrade max flame height | 8 m |
| Power upgrade num cartridges | 4 |
| Fuel consumption 11kg bottle effects | 1000 |
| Fuel consumption 11kg bottle effect duration | 0.5 s |
| Fuel consumption 11kg bottle effect height | 5 m |
| DMX safety channel ranges | 30-50%, 40-60%, 50-70%, 60-80%, 70-90% |
| Max. flame duration programmable | 25 s |
| Safety timer | 15 s |
| Hazard zones | 16 |
| Terminal cues max | 999 |
| Max. atomic effect delay | 0.7 s |
| Step delay resolution | 10 m/s |
| Firmware date | 2023-12-15 |
| Valve replacement cycles | 50,000 |
| Component service life | 8 years |
| Leak test pressure cartridge | 10 bar |
| Leak test pressure liquid phase | 12 bar |
| Leak test hold time | 15 min |
| Control interface | firing key, 12-24V_DC, DMX512, RS485, wireless optional |
| E-stop input | Yes |
| Charging input connector | 2.1mm_hollow_plug |
| Rain proof | Yes |
| Min. distance gas bottle to device | 1 m |
New to dry hire? Read how dry hire works.
Accessories
Linked to this item in our system
Galaxis G-Flame aerosol nozzle “S”
Galaxis G-Flame propane gas nozzle
Galaxis G-Flame liquid propane nozzle
Galaxis G-Flame power upgrade (excl. nozzle)
Hyred LPG hose; TS 21.8L fitting to quick connector, 5 m
Hyred LPG extension hose, 5 m
Hyred LPG extension hose, 10 m
Hyred Propane bottle connector with TS 21.8 L fitting
Hyred Horizontal flame bar for G-Flame incl. nozzle and bracket, 2 m
Hyred Vertical flame bar for G-Flame incl. nozzle and bracket, 2 m
Consumables
All consumables →
About flame effects
How it works
Flame units produce real fire on cue, from a short burst to a column of several metres. Gas units burn propane or a propane/butane mix from cartridges or cylinders. Liquid units atomise a flame fluid and ignite it, which gives a flame with more body; some can add colour.
What you need
Fuel: gas cartridges, or a gas cylinder with regulator and hose, or flame fluid. The nozzle sets the size of the flame. Fuels and colour additives are in consumables; hoses, regulators and nozzles are in the accessories of each unit. Not sure whether gas or liquid suits your show? Read liquid vs gas flame: how to choose.
Safety
Every unit has its own safety distances and an indoor or outdoor rating; respect what the product sheet and the manual say. Keep an extinguisher at hand, watch the wind outdoors, and use a safety arm system so that no effect can fire by accident.
Frequently asked questions
Can flame effects be used indoors?
Some units can, in large venues and with the approval of the venue and the fire service; others are for outdoor use only. Check the rating on the product sheet.
