Hansol Power Flame 1, (max. 6 m)
Brand: Hansol
- Inspected and tested before every rental
- Comes with its documentation: manual and certificates
- Shipped from our 12,000 m³ warehouse in Affligem, Belgium
- Reachable outside office hours too
Complete your setup?
These items are linked to the Hansol Power Flame 1, (max. 6 m). Tick what you need.
Description
The Hansol Power Flame I can make a propane fire ball up to 8m high. Inside the system a gas tank is installed and propane gas from an external gas cylinder is used to charge the Power Flame unit. It takes about 10 seconds for charging. The Power Flame uses a spark to ignite the pilot flame. This pilot flame must be monitored by the rod flame sensor before big flames can be made. The system is controlled by standard DMX.
Technical data
| Dimensions (L × W × H) | 53 × 31 × 57 cm |
|---|---|
| Weight | 21.5 kg |
| Power | 120 W |
| Runs on | Propane |
| Tank capacity | 12 L |
| Mains frequency | 50–60 Hz |
| DMX connector | 3-pin |
| Ignition | pilot flame (LPG) |
| Pilot fuel | LPG or Propane Gas |
| Main fuel | LPG or Propane Gas |
| Working pressure mpa | 0.5 – 1 |
| Gas pressure | 5 – 10 bar |
| Article code | VH-PF-120 |
Show all specifications (4 more)
| Charge time | 10 s |
|---|---|
| Fire interval | 10 s |
| Flame safeguard | Rod Type flame sensor |
| DMX standard | DMX 512 |
New to dry hire? Read how dry hire works.
Accessories
Linked to this item in our system
About flame effects
How it works
Flame units produce real fire on cue, from a short burst to a column of several metres. Gas units burn propane or a propane/butane mix from cartridges or cylinders. Liquid units atomise a flame fluid and ignite it, which gives a flame with more body; some can add colour.
What you need
Fuel: gas cartridges, or a gas cylinder with regulator and hose, or flame fluid. The nozzle sets the size of the flame. Fuels and colour additives are in consumables; hoses, regulators and nozzles are in the accessories of each unit. Not sure whether gas or liquid suits your show? Read liquid vs gas flame: how to choose.
Safety
Every unit has its own safety distances and an indoor or outdoor rating; respect what the product sheet and the manual say. Keep an extinguisher at hand, watch the wind outdoors, and use a safety arm system so that no effect can fire by accident.
Frequently asked questions
Can flame effects be used indoors?
Some units can, in large venues and with the approval of the venue and the fire service; others are for outdoor use only. Check the rating on the product sheet.
More in Gas Flame SFX
View all →
Explo Fire bowl plus, 230V, Ø 60 cm
Explo Fire bowl plus, 230V, Ø 90 cm
Explo GX2, 230 V, excl. hose
Explo SFX Torch

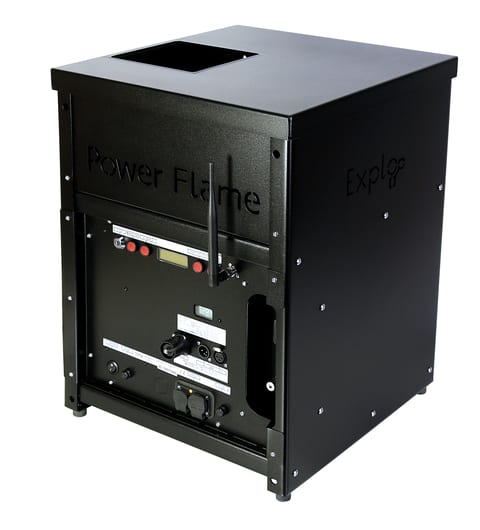

Explo X2 Power Flame, liquid propane flame effect
