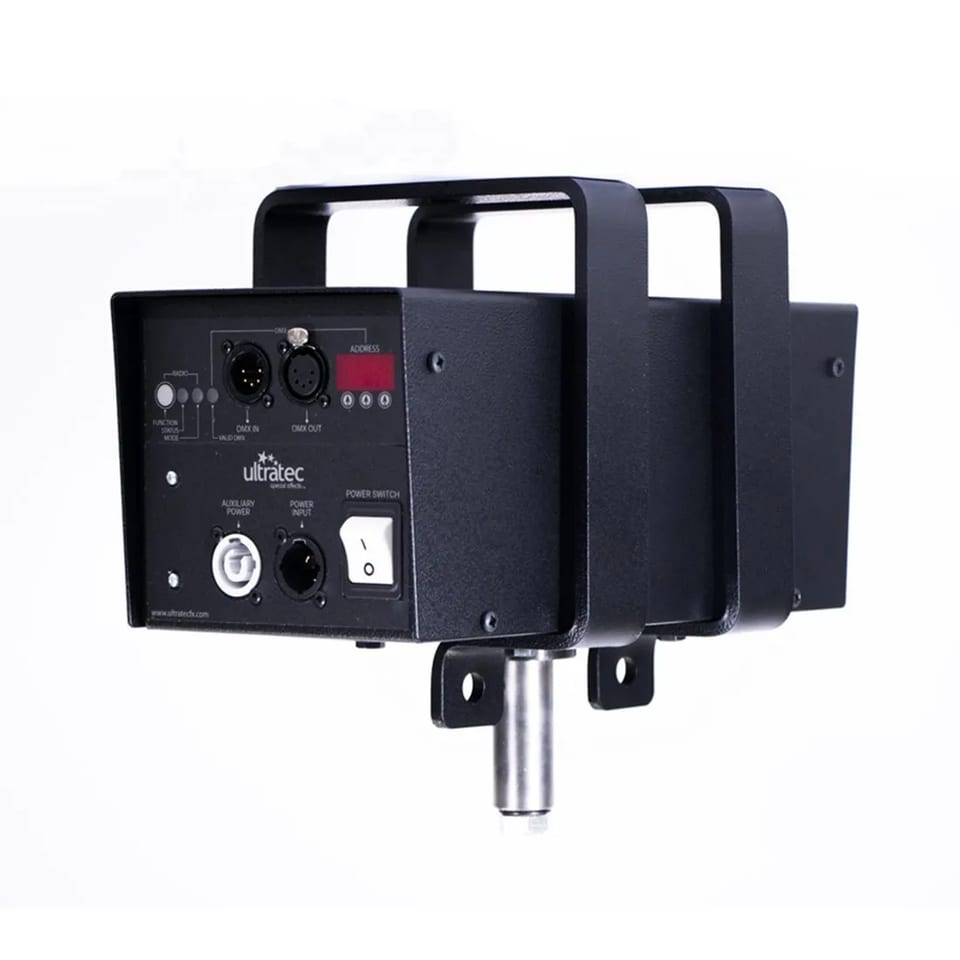

Ultratec swivel bracket, 90° DMX controlled rotator

VH-CLF-6000

Brand: Ultratec

PriceOn requestAdd it to your quote and we send you a price.
  • Inspected and tested before every rental
  • Comes with its documentation: manual and certificates
  • Shipped from our 12,000 m³ warehouse in Affligem, Belgium
  • Reachable outside office hours too

Description

The Ultratec Swivel Bracket rotates an effect machine over up to 90 degrees to spread fog, snow or bubbles over a wider area. It hangs from truss with its dual hanging mounts, in a hanging or inverted position, and carries up to 45 kg. Rotation speed (max. 8 rpm) is set via DMX; a second DMX channel switches the auxiliary power outlet (up to 8 A) for the connected machine.

Size: 30.5 cm x 17.2 cm x 25.2 cm
Weight: 9 kg
Voltage: 120-230 V
Power in: Neutrik PowerCON
Service: DMX-512 / RDM
Max. load: 45 kg
Use: indoor

Technical data

Weight9.3 kg
Article codeVH-CLF-6000
