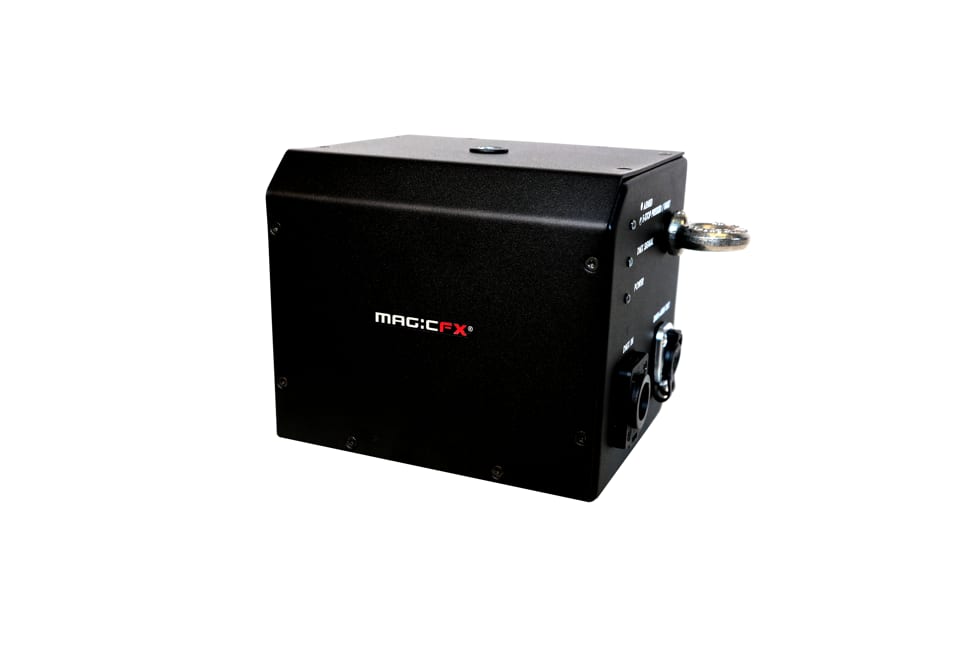

Magic FX Combiner Box
VH-MFX3225
Brand: Magic FX
Starting price€10.00For 1–3 days rental · excl. VAT and delivery
- Inspected and tested before every rental
- Comes with its documentation: manual and certificates
- Shipped from our 12,000 m³ warehouse in Affligem, Belgium
- Reachable outside office hours too
Description
The MAGIC FX COMBINER BOX combines DMX and the arm signal to run over one cable. It outputs a safety line that is interconnected with the master line. Multiple COMBINER BOXES make it possible to create star networks of lines that are distributed from one or more central location(s). Possible to use it as a standalone booster of the arm signal.
SPECIFICATIONS.
Length:15 cm
Width: 13.5 cm
Height: 13.5 cm
Weight: 1.6 kg
Voltage: 100-250 Vac 50/60 Hz
Power: 50 W
Technical data
| Dimensions (L × W × H) | 25 × 23 × 22 cm |
|---|---|
| Weight | 1.6 kg |
| Power | 50 W |
| Mains frequency | 50/60 Hz |
| Power connector | Neutrik powerCON TRUE1 (in) |
| Mounting | M10 insert |
| Protection | Rainproof |
| Arm DMX connector | Neutrik etherCON RJ45 (in & out) |
| DMX in connector | XLR 5-pin |
| Arm system role | slave |
| Functions | ARM signal splitter, ARM signal booster, DMX+ARM combiner |
| LED indicators | ARM signal (red), DMX signal (green), Power (blue) |
| Article code | VH-MFX3225 |
Show all specifications (2 more)
| Safety eye | M6 |
|---|---|
| Terminator required | Yes |
