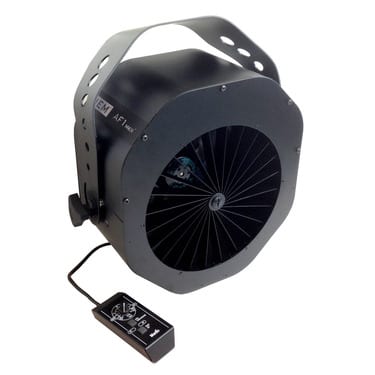

JEM AF-1 DMX controllable high output fan
Brand: JEM
- Inspected and tested before every rental
- Comes with its documentation: manual and certificates
- Shipped from our 12,000 m³ warehouse in Affligem, Belgium
- Reachable outside office hours too
Complete your setup?
These items are linked to the JEM AF-1 DMX controllable high output fan. Tick what you need.
Description
The JEM AF-1 MkII offers enhanced responsiveness and versatility compared to its predecessor, the AF-1. Featuring a 12” sealed axial motor with variable speed, it remains highly responsive even at low speeds while maintaining a quiet operation, producing only 70 dBA at maximum speed. With integrated DMX control and an included remote, it is suitable for a wide range of indoor and outdoor applications, including touring, stage performances, theme parks, and cruise ships. Its instant-on capability and low noise make it an ideal choice for various settings.
Size: 40 cm x 18 cm x 41 cm
Weight: 8.5 kg
Voltage: 230 V
Power: 120 W
Control: DMX
DMX channels: 1
Technical data
| Dimensions (L × W × H) | 40 × 18 × 41 cm |
|---|---|
| Weight | 8.5 kg |
| Power | 230 W |
| Mains frequency | 50/60 Hz |
| DMX channels | 1 |
| DMX connector | 3-pin and 5-pin locking XLR |
| Control | Remote control unit, DMX, test switch |
| Operating temperature | 0 – 55 °C |
| Housing | Steel |
| Max. noise level | 70 dB(A) |
| Power w US model | 175 |
| Current a US model | 1.48 |
| Article code | VH-AF1 |
Show all specifications (20 more)
| Voltage US model | 110-120V nominal, 50/60Hz |
|---|---|
| Voltage EU model | 220-240V nominal, 50/60Hz |
| Fuse EU | 3.15 AT slow blow |
| Fuse US | 5 AT slow blow |
| Fan speed rpm | 200 – 2500 |
| Max. airflow m3 | 1815 h |
| Operation time | Continuous |
| DMX addressing | DIP-switch |
| DMX compliance | USITT DMX-512A |
| Remote connector | 3-pin locking XLR |
| Max. remote cable | 50 m |
| Remote cable supplied | 3 m |
| Delay time | 2 – 255 s |
| Run time | 2 – 255 s |
| Orientation | Any |
| Min. clearance | 0.1 m |
| Finish | Black |
| Dip switch test function | Yes |
| Pn EU | 92615010 |
| Pn US | 92615110 |
