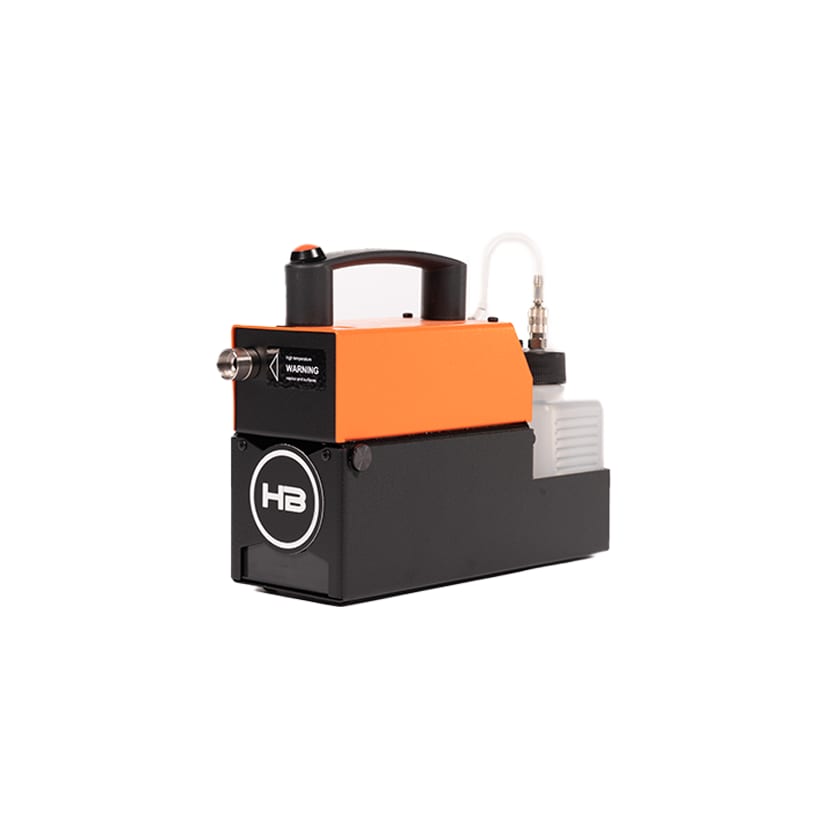

Hazebase Piccola, battery operated smoke machine
VH-Piccola
Brand: Hazebase
Starting price€60.00For 1–3 days rental · excl. VAT and delivery
- Inspected and tested before every rental
- Comes with its documentation: manual and certificates
- Shipped from our 12,000 m³ warehouse in Affligem, Belgium
- Reachable outside office hours too
Complete your setup?
These items are linked to the Hazebase Piccola, battery operated smoke machine. Tick what you need.
Description
The Piccola is a battery-operated smoke machine for use both as a fog effect in the entertainment area, as well as for flow tests or leak detection. It only needs the shortest heating times (1 sec.) And also has a compact housing with low weight (2.6kg).
Size: 20.3 cm x 7.9 cm x 16.3 cm
Weight: 2.6 kg
Voltage: 12 V
Power: 200 W
Control: DMX
Consumables: base*B fog fluid
Technical data
| Dimensions (L × W × H) | 20.3 × 7.9 × 16.3 cm |
|---|---|
| Weight | 2.6 kg |
| Power | 200 W |
| Runs on | Smoke fluid |
| Tank capacity | 250 ml |
| Fluid | hazebase base*B |
| Warm-up time | 1 s |
| DMX protocol | DMX-512 |
| RDM | Yes |
| Wireless control | Yes |
| Control | manual (trigger button), DMX-512/RDM, cable remote control (optional), radio remote control (optional) |
| Operating temperature | 5 – 45 °C |
| Article code | VH-Piccola |
Show all specifications (28 more)
| Display | OLED |
|---|---|
| Battery | lead-gel (AGM) |
| Battery capacity | 3.4 Ah |
| Battery voltage | 12 V |
| Functional principle | evaporator fog machine, directly heated, battery operated |
| Power supply | 12V DC, 200W (heating element) |
| Fog density settings | single shot, 25%, 50%, 75%, 100% |
| Fluid consumption ml per min 25pct | 1.5 |
| Fluid consumption ml per min 50pct | 3 |
| Fluid consumption ml per min 75pct | 4.5 |
| Fluid consumption ml per min 100pct | 6 |
| Battery life min at 25pct | 30 |
| Battery life min at 50pct | 10 |
| Battery life min at 75pct | 6 |
| Battery life min at 100pct | 4 |
| Battery connector | XLR 4-pin |
| Charger output | 15 W |
| Charger output | 18 V |
| Charger input | 90 – 264 V |
| Control interface | 5-pin XLR |
| DMX auto off after no signal | 60 min |
| Battery max temp | 45 °C |
| Safety distance near nozzle | 1.5 m |
| Min. clearance flammable objects | 60 cm |
| Single shot pump blows | 3 |
| Follow up time | 10 s |
| Hose diameter | 15 mm |
| Hose attachment | magnetic |
